Control Panels For Hydraulic Elevators

Control Panels For Hydraulic Elevators

Add to offer list
Added to list

TECHNICAL SPECIFICATIONS

  • Installation wiring type: Serial wiring (ABC) / Conventional wiring
  • Stops: Up to 16
  • Motor connection type: Direct or Star-Delta
  • Control board: B7 main control board
  • Standards: EN 81.10, EN 81.20
  • Operation modes: Simplex / Duplex / Triplex
  • Installation: Option for pre-wired solution to reduce installation time
  • Rescue operation: UPS-based rescue system support (optional)
  • Enclosure dimensions: 80 cm x 60 cm or 85 cm x 70 cm

TECHNICAL MATERIAL & DOCUMENTATION

Access to full technical documentation and wiring diagrams requires login.

⚠ Note: Please log in to access technical materials.
Operation manual: (Login required)
Wiring diagram: (Login required)
Declaration of conformity: (Login required)

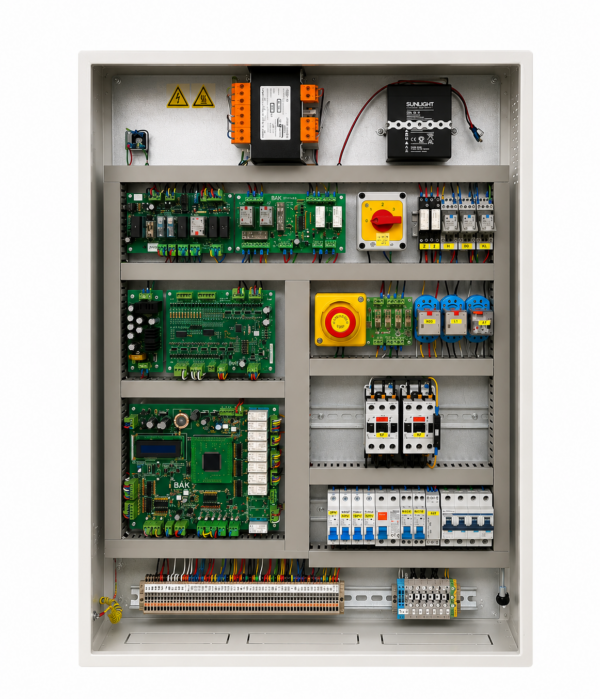

The B7 hydraulic elevator control panel is the central control system of the elevator, ensuring safe, stable, and efficient operation. It is designed and manufactured using high-reliability industrial components and modern electronics, fully meeting the requirements of both new and existing installations. It offers a high level of safety and easy configuration across different installations, making it ideal for both modernization projects and new installations.
