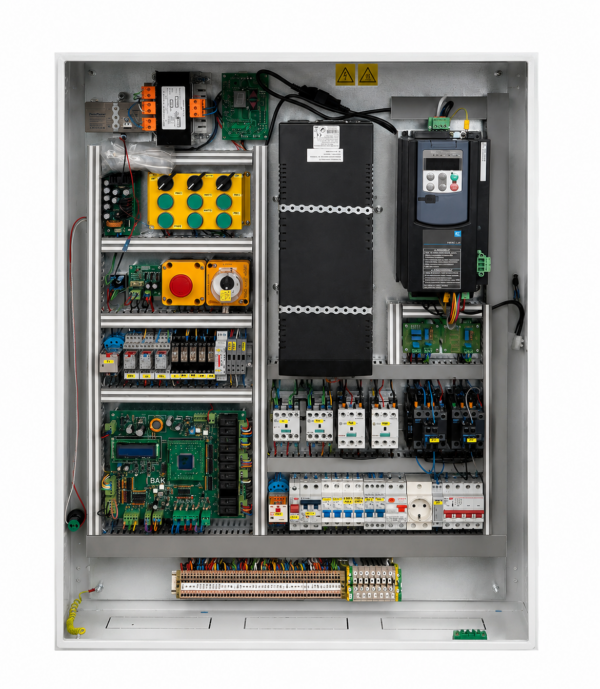

BAK MRL Control Panel (Machine Room-less)

BAK MRL Control Panel (Machine Room-less)

Add to offer list
Added to list

TECHNICAL SPECIFICATIONS

  • Installation wiring type: Serial wiring (ABC) / Conventional wiring
  • Stops: Up to 16
  • Motor type: Gearless
  • Control board: B7 main control board
  • Standards: EN 81.20
  • Operation modes: Simplex / Duplex / Triplex
  • Installation: Option for pre-wired car and shaft wiring for fast installation
  • Rescue operation: Integrated UPS rescue system
  • Enclosure dimensions: Custom dimensions

TECHNICAL MATERIAL & DOCUMENTATION

Access to full technical documentation and wiring diagrams requires login.

⚠ Note: Please log in to access technical materials.
Operation manual: (Login required)
Wiring diagram: (Login required)
Declaration of conformity: (Login required)

The BAK MRL control panel represents the most advanced solution for installations without a traditional machine room. MRL (Machine Room-Less) technology allows all equipment to be installed within the shaft, with the control panel typically placed in a dedicated metal cabinet next to the top floor landing door. MRL systems offer maximum space-saving and fully align with modern global trends in the elevator industry.
